Rack Kits For Most
|
Links PDF Files ZIP Downloads |

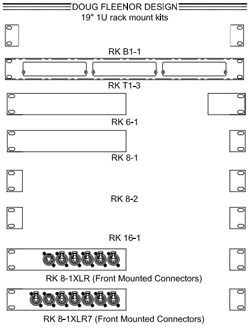

All Doug Fleenor Design standard products and most custom products have rack kits available for mounting units in 19" racks.
| Device | Rack Kit | Description |
| 121 | RK6-1 | one 6" wide gray chassis in 1U |
| 121D | RK6-1 | one 8" wide gray chassis in 1U |
| 121Q | RK16-1 | one 16" wide gray chassis in 1U |
| 123 | RK6-1 | one 6" wide gray chassis in 1U |
| 125 | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-1FMC-5 | one 8" wide gray chassis in 1U with connectors on front | |
| RK8-1FMC-5-FT | one 8" wide gray chassis in 1U with connectors on front with feed through connector | |
| RK8-2-S | two 8" wide gray chassis in 1U | |
| 1211 | RK16-1 | one 16" wide gray chassis in 1U |
| 125EE | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-1FMC-5 | one 8" wide gray chassis in 1U with connectors on front | |
| RK8-1FMC-5-FT | one 8" wide gray chassis in 1U with connectors on front with feed through connector | |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 127 | RK16-1 | one 16" wide gray chassis in 1U |
| Rotor-Router | RK16-1 | one 16" wide gray chassis in 1U |
| 221E | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 321E | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 421E | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 521E | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 621E | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2 | two 8" wide gray chassis in 1U | |
| 2322DMX | RK8-1 | one 8" wide gray chassis in 1U |
| RK8-2-S | two 8" wide gray chassis in 1U | |
| ANL2DMX | RKB-1 | holds one 16" wide silver chassis in 1U |
| DMX1REL20A | RK6-1 | one 6" wide gray chassis in 1U |
| DMX6REL15A | RK16-1 | one 16" wide gray chassis in 1U |
| DMX2REL5A | RK6-1 | one 6" wide gray chassis in 1U |
| DMX6REL1A | RKT1-3 | holds three 5" wide black chassis in 1U (L,C,R) |
| DMX1AMX | RK6-1 | one 6" wide gray chassis in 1U |
| DMX12ANL | RK8-1 | one 8" wide gray chassis in 1U |
| DMX96ANL | RKB1-1 | holds one 16" wide silver chassis in 1U |
| DMX2CMX | RK6-1 | one 6" wide gray chassis in 1U |
| DMX2D54 | RK6-1 | one 6" wide gray chassis in 1U |
| DMX2DALI | RK8-1 | one 8" wide gray chassis in 1U |
| DMX2MPX | RK6-1 | one 6" wide gray chassis in 1U |
| DMX96OC | RK16-1 | one 16" wide gray chassis in 1U |
| E2E | RK16-1 | one 16" wide gray chassis in 1U |
| NODE4 | RK16-1 | one 16" wide gray chassis in 1U |
| SW1 | RK6-1 | one 6" wide gray chassis in 1U |
| SW2 | RK8-1 | one 8" wide gray chassis in 1U |
| SW3 | RK8-1 | one 8" wide gray chassis in 1U |
| SW4 | RK16-1 | one 16" wide gray chassis in 1U |
| n/a | RK-WALL | any gray chassis on a wall |
