model:
E8ANL-DIN
E8ANL-DIN-JBOX
E8ANL-DIN-JBOX-PS

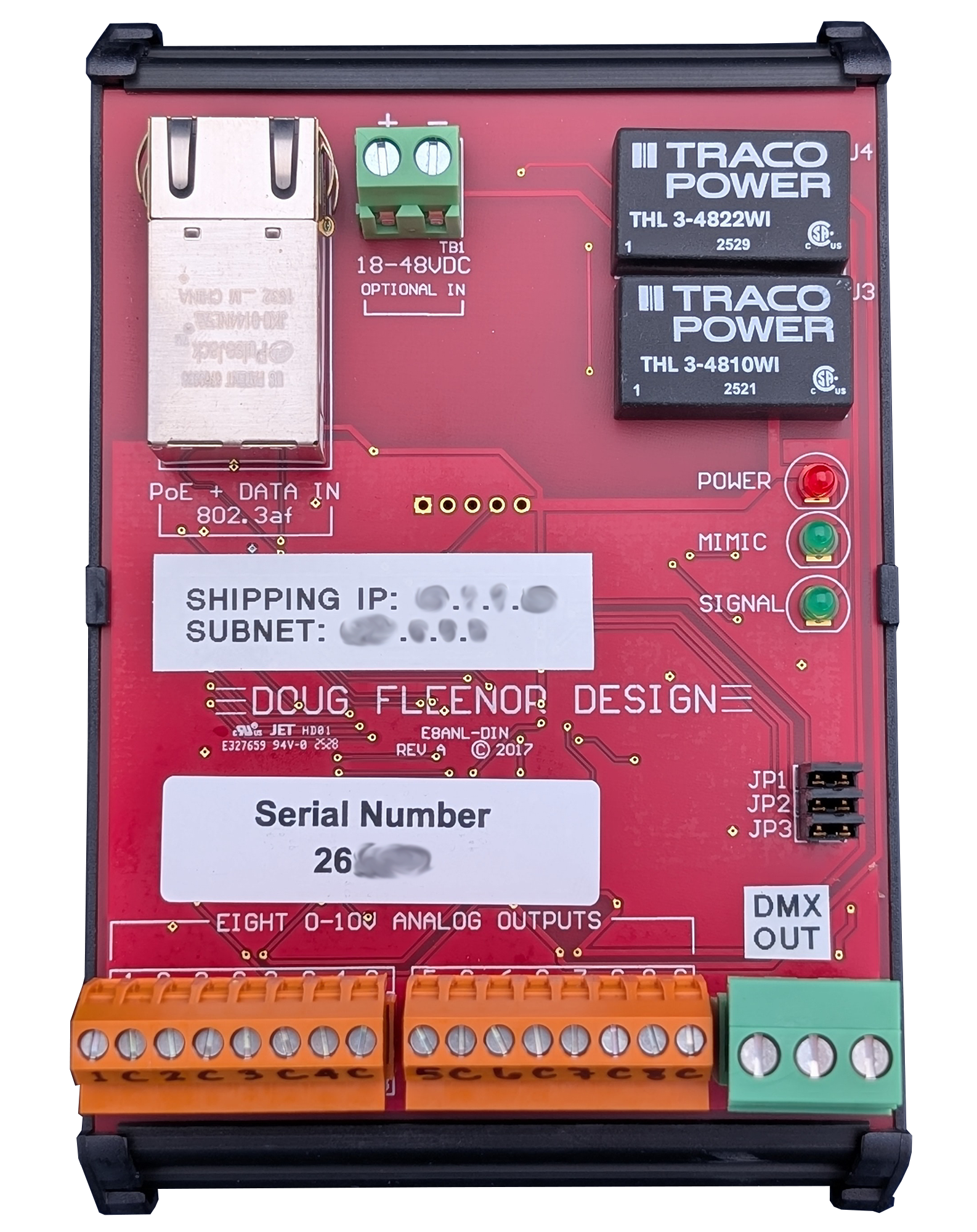

The E8ANL-DIN is an Ethernet (sACN or ArtNet) interface with 8 analog (0-10V) outputs (each with its own common terminal) and a DMX512 output. Configuration is via a built-in webserver. The standard Ethernet connector (8P8C aka RJ-45) accepts PoE (power over Ethernet) or the user may supply power (18 to 48 VDC) on a two-position terminal block. DMX512 and analog connections are on pluggable Phoenix terminal blocks. The device mounts on standard 35mm “top hat” DIN rail.

The E8ANL-DIN can be pre-mounted in a NEMA 1 electrical enclosure (model: E8ANL-DIN-JBOX).
