The Preset 10 Architectural Two lighting control station capable of storing up to ten presets. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons.

Systems can be created by using one or more stations and a power supply. The solid aluminum faceplate is designed to install over a standard two gang electrical box. Connections to the Preset 10 Architectural Two are power (2 wires) and DMX512 (3 wires). Power for the Preset 10 can be supplied from a variety of sources, including a 10V class 2 “doorbell” transformer.

The Preset 10 Architectural Two system can work in conjunction with a lighting console, automatically switching between preset and console control or by combining the consoles input with the active preset. In switch over mode when the console generates DMX the Preset 10 Architectural Two goes off-line. The console then operates normally. Upon loss of DMX from the console, the Preset 10 Architectural Two either returns to its pervious preset or holds the last look (jumper selectable). In Combine Mode the Preset 10 Architectural Two merges the levels from the console with the levels of the currently active preset.

The Preset 10 system also comes in a portable version (model PRE10-P) that acts as a backup station for any DMX512 lighting console or as a stand-alone DMX512 preset console.

SPECIFICATIONS
Connector:	Phoenix Contact MSTB series 3 position two part terminal block Model: MSTB 2,5/3-ST-5,08 Order Number: 17 57 02 2 Phoenix Contact MSTB series 5 position two part terminal block Model: MSTB 2,5/5-ST-5,08 Order Number: 17 57 04 8
Connector pin out:	1 (C) DMX512 common 2 ( -) DMX512 data - (input) 3 (+) DMX512 data + (input) 1 (C) DMX512 common 2 ( -) DMX512 data - (output) 3 (+) DMX512 data + (output) 4 (C) Supply common (internally tied to pin1) 5 (V) Supply voltage "hot"
Input/Output circuit:	ESD protected EIA-485 transceiver (LT1785)
Indicators:	Ten green preset indicator LEDs One yellow "Grand Master 100%" indicator LED One yellow "Grand Master 0%" indicator LED One yellow Fade Time LED One red Signal / Record LED
User controls:	Ten preset push buttons One "Grand Master Up" push button One "Grand Master Down" push button One recessed record push button One recessed fade time push button
Option jumpers:	For a single station installation all jumpers should be installed.
	INSTALLED REMOVED JP1 Recording Enabled Recording Disabled JP2 Master Station Slave Station JP3 Fade to last active preset Hold Last Look JP4 Single Station Mode Station Mode Multi Station Mode JP5 Switch Over Mode Highest Takes Precedence (HTP) Mode JP6 Radio Button Mode Push On Push Off Mode
Power input:	9 to 16 volts AC or DC / 150 mA per station (A 10 volt class "doorbell" transformer is recommended for fixed installations)
Color:	Black anodized with L.A.S.E.R engraved nomenclature

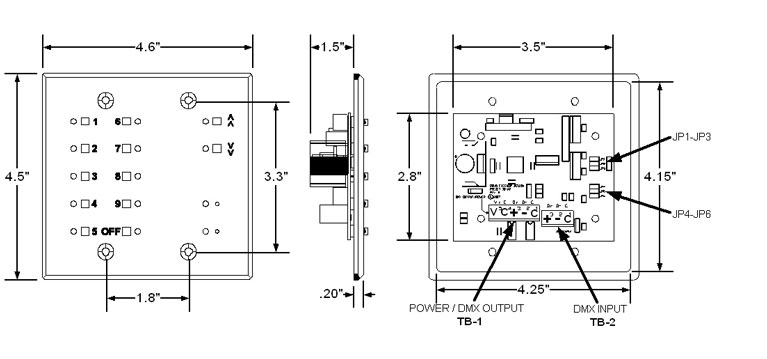

Size :	Faceplate: 4.5"h X 4.6"w X 0.2"d Faceplate rear inset: 4.15"h X 4.25"w X 0.1"d Electrical box minimum inside dimensions: 3.6"h X 2.9"w X 1.26"d
