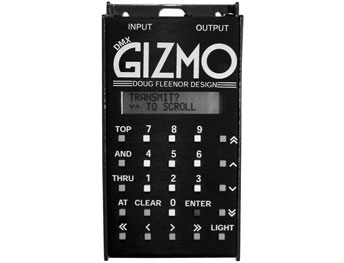

Transmit Up to 512 Channels of DMX512
Select individual channels using the channel check mode, or select groups of channels using the AND and THRU buttons. Adjust levels with the Up/Down arrows, or press the AT key followed by the level to set a specific value. Press CLEAR to deselect channels leaving levels unchanged. Use the GIZMO as a stand-alone console for all your DMX emergencies. Even change the start codes if desired.

Receive DMX512
Receive and display data in several formats. The operator can view all 512 channel levels, selected levels, non-zero channels, the refresh rate, number of channels transmitted, received start codes, flicker, and pass through mode for troubleshooting problems.

Save and Recall 100 Scenes
Save and restore snapshots of DMX512 levels. The GIZMO can save and recall up to 100 scenes of either the currently received DMX levels or transmitted data.

Continuity, Pin Correctness and Data Reliability Tests
Check cables for shorts, open connections, and data reliability.

LCD Display
Two line backlit display, visible in the dark or direct sunlight with the low power back light display.

9 Volt Battery or AC Power Operation
Uses a typical 9 volt battery or included A/C (wall mount) supply.

Durable Metal Housing
The .10" aluminum enclosure can withstand on-the-road travel or the occasional off the bench leap.

Padded Carrying Case Included
Manufactured by REELINE features a layer of closed cell foam to protect against moisture.

25 Button Keypad
Full keypad with CLEAR, ENTER, ALL, AND, THRU and TOP buttons.

Five Year Warranty
We want you to know it works great.

Specifications:
Input baud rate:	250 Kb/s
Input circuit:	ESD protected EIA-485 transceiver (LT1785)
Input signal:	3 volts minimum, 12 volts maximum
Input connector:	Male Gold plated 5 pin XLR (Neutrik D-1 series). Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+. Cable check on pin 4 and pin 5
Output isolation:	600 Volts
Output baud rate:	250 Kb/s
Output circuit:	ESD protected EIA-485 transceiver (LT1785)
Output signal:	DMX512-A
Output connector:	Female Gold plated 5 pin XLR (Neutrik D-1 series). Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+ Cable check on pin 4 and pin 5
User interface:	25 button keypad and two line 16 character backlit LCD display
Battery:	Provided with 9 Volt NiMH rechargeable or User provided 9 Volt Alkaline (see "Notes On The Battery")
Wall power supply:	Input: 100 - 240VAC 0.5A Max. 50/60 Hz Output: +15V DC 0.666A Connector: 2.5mm type with the center conductor as positive
Power input:	15VDC 0.075A Connector: 2.5mm type with the center conductor as positive
Color:	Front black anodized, rear red clear powder coat
Size and weight:	Chassis 6.75"l X 3.5"w X 1.4"h, 16 ounces Power supply 2.2"l X 1.9"w X 1.0"h, 5 ounces
